SAPPHIRE & tetraCORE™ WATERJET BLAST NOZZLES

QUALITY THAT BLASTS AWAY INDUSTRY NORMS

dti™ is proud to offer a full line of standard surface preparation and material removal nozzles incorporating our world-renowned orifice products, dtiUTILITY™ Sapphire and tetraCORE™ Diamond. Each of our waterjetting nozzles are manufactured with the highest quality materials and precision machining techniques in the industry and equipped with heat-treated stainless-steel mounts, aerospace grade titanium retainers and 100% quality inspection. Every step dti™ takes above standard quality norms ensures: MAXIMIZED NOZZLE LIFE, CONSISTENT JET STREAM PROFILE & COHERENCY, REDUCED DOWNTIME, SUPERIOR BLASTING PERFORMANCE, and OPTIMIZED PRODUCTIVITY.

DTI Group Of 11 Nozzles 400 Dpi

WATERJET BLASTING STANDARD SIZES: 0.005”-0.034”
PLEASE INQUIRE ABOUT CUSTOM SIZES

VIEW OUR WATERJET BLASTING STANDARD PARTS GUIDE

VIEW OUR FLOW RATE CHART

Calculate the True Cost:

Find out how much you’ll save by upgrading your orifice.
Sapphire vs. tetraCORE™ Calculator

NEW MATERIAL GRADE tetraCORE™ DIAMOND

THE AFFORDABLE SAPPHIRE UPGRADE - DELIVERING A NEW TIER OF WATERJETTING PERFORMANCE

Precision engineered to offer ultimate performance consistency, tetraCORE™ is a tetrahedrally bonded diamond material that resists erosion, chipping, and fracturing to decrease downtime, optimize productivity and reduce operating cost. tetraCORE™ provides diamond quality at an affordable price point allowing you to go the distance with your production without costly downtime to change out inconsistent sapphire orifices.

Lifetime Comparision Trans

STANDARD tetraCORE™ & SAPPHIRE BLAST NOZZLES

FULL LINE OF INDUTRY STANDARD OR CUSTOM NOZZLE STYLES

dti™ offers a wide variety of standard blast nozzle parts listed below, as well as the option to customize your nozzle to fit your application. Don’t see the part you need below? Contact us to find out if we can offer it or make it exclusively for you.

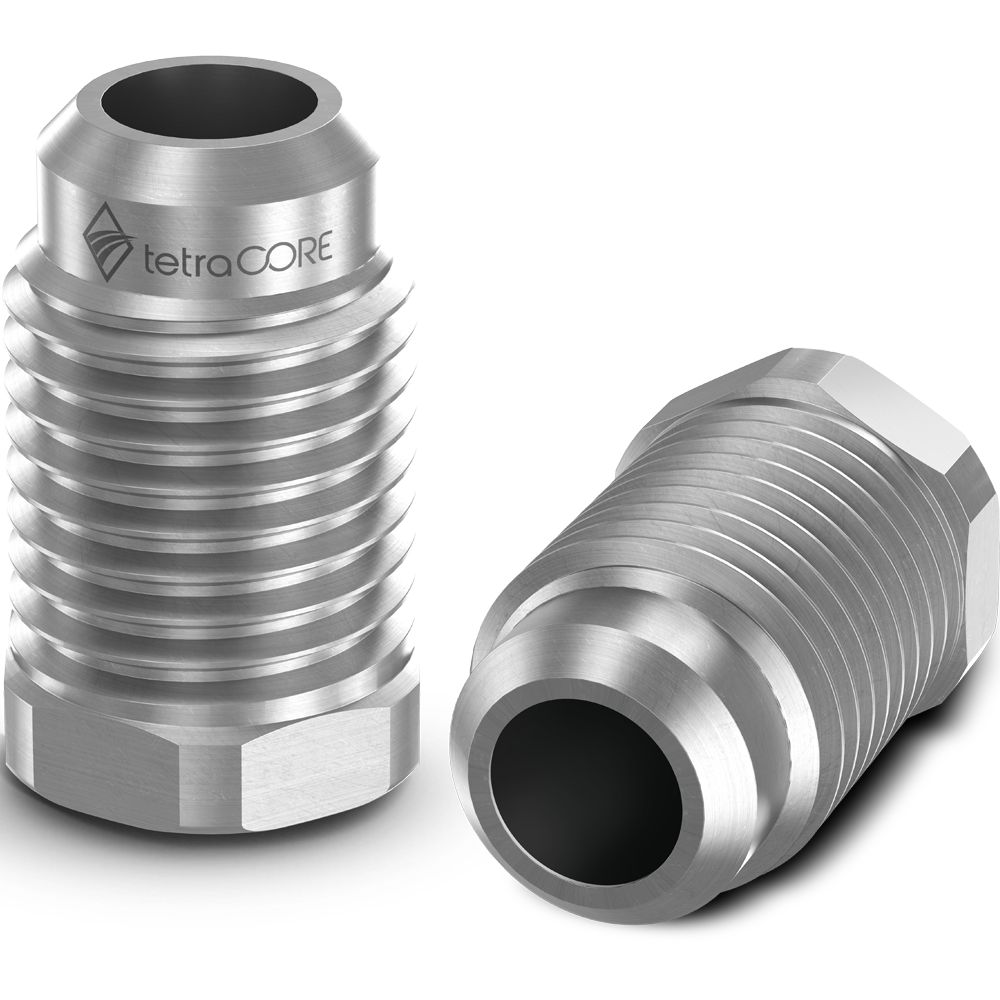

DTI-82

Thread Pitch: 3/8”-24
Description:  3/8” hex head
Sealing Angle (Included): 84°
Similar to: 4065, 4067

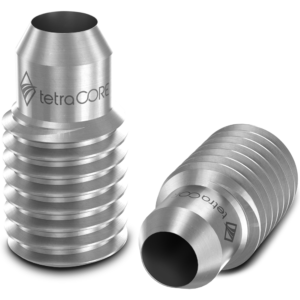

DTI-94

Thread Pitch: M10x1.5
Description: 5mm hex key slot
Sealing Angle (Included): 58°
Similar to: Form 21, 3261, 3688, Type 965

DTI-88

Thread Pitch: 3/8”-24
Description: 3/8” hex head
Sealing Angle (Included): 112°
Similar to: 3024, 3546, Type 972

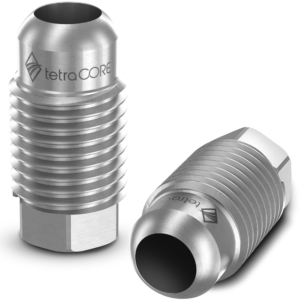

DTI-110

Thread Pitch: 3/8-24”
Description: 3/8-24”, Jetstream UHPX

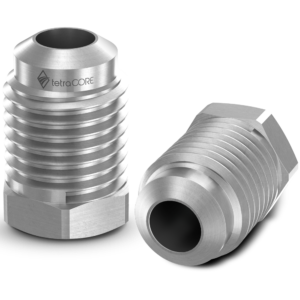

DTI-89

Thread Pitch: 7/16”- 20
Description: 7/16” hex head
Sealing Angle (Included): 112°
Similar to: 3076, 3604, Type 975

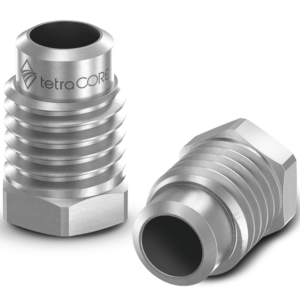

DTI-97

Thread Pitch: 1/4"-28
Description: 1/4" hex head
Sealing Angle (Included): 112°
Similar to: 3026, 3606

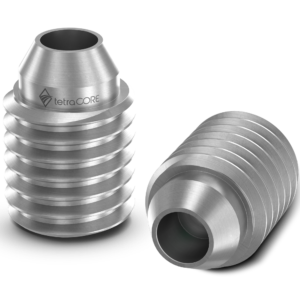

DTI-90

Thread Pitch: M10x1.5
Description: 5mm hex key slot, shortened
Sealing Angle (Included): 58°
Similar to: 3727

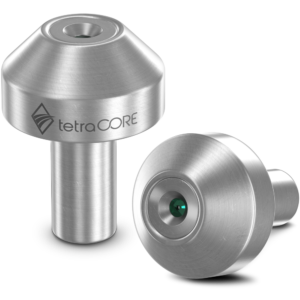

DTI-87

Description:  Long Stem
Sealing Angle (Included): 84°
Similar to: 2908

DTI-118

Thread Pitch: ¼” NPT
Description: ¼” NPT, Hard Hitter

DTI-58

Description: Long Stem
Sealing Angle (Included): 60°
Similar to: 2720, Type 257

DTI-127

Thread Pitch: M4x0.5
Description: M4x0.5, Slotted Type
Similar to : 3121 , Type 130

ORIFICE MATERIAL VERSATILITY

ALIGN ORIFICE PERFORMANCE TO JOB PERFORMANCE NEEDS

dti™ offers standard blast nozzle assemblies with your choice of orifice material. For unbeatable lifetimes and optimum performance consistency, tetraCORE™ orifices minimize downtime and maximize productivity. For less demanding jobs, dtiUTILITY™ Sapphire orifices are precision manufactured to ensure quality and performance.

Utility Grade: Long life

High jet stream coherency

Max jet stream length

Premier sapphire material quality

Aerospace grade mounting & retaining materials

100% quality inspected

Blast Sapphire

Performance Grade: 10-15X longer life than Sapphire

100% tested at 50K psi

Zero ID edge degradation over use

Premium jet stream coherency & integrity

Optimized jet stream length and consistency

Maximized uptime and productivity

Green Tetracore 92315a

ORDERING SPECIFICATIONS & CUSTOMIZATION

CHOOSE YOUR ORIFICE MATERIAL, STYLE & SIZE

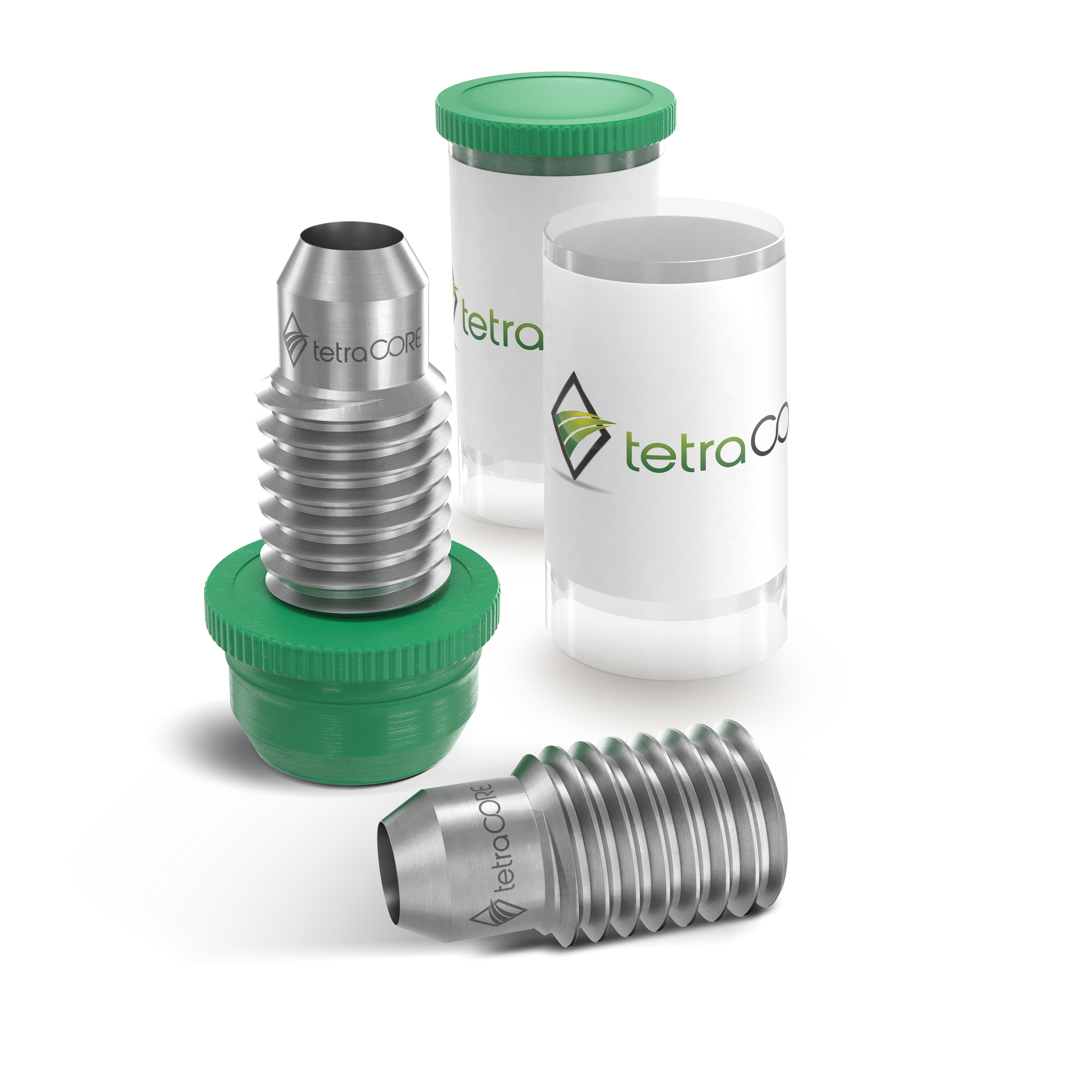

Blast Dti 94 Package Group

0.006” - 0.035”
ADDITIONAL SIZES
0.003”-0.005” | 0.036”-0.070”

XX - XX - XX
Orifice MaterialNozzle Style – Size

TA = tetraCORE™ Orifice
SA = Sapphire Orifice
PL = Plug, NO Orifice

dti™ will work with you to meet your exact waterjet nozzle requirements. Contact us about our custom nozzle options, including:

Custom designs, orifice sizes and dimensions

Additional testing options

Custom packaging, labeling and/or laser marking

Specialized mount, retainer, and/or orifice materials

WORLDWIDE BLAST NOZZLE DISTRIBUTION

dti™ has trusted partnerships with the top waterjet OEMs and Distributors worldwide, making standard products readily available to you when you need them wherever you may be located. Contact us to find a distributor in your area. If interested in becoming a distributor of our products, call or email us today.

dti Inside - Worldwide Distributors

Contact us to become a Distributor or find a Distributor in your area!
